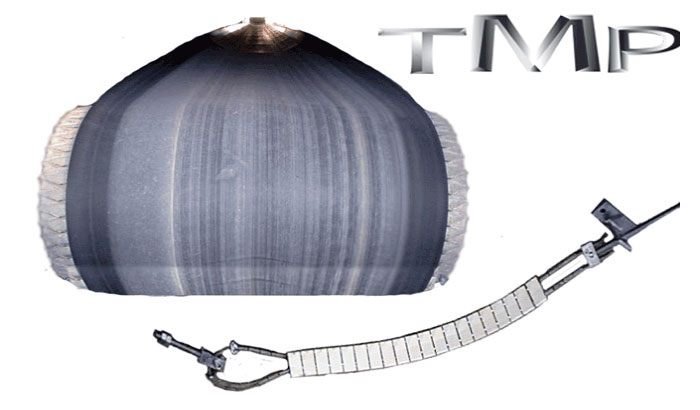

Totally different from the conventional structures,the ceramic belts of TMP is the newest type of
belt scraper already developed up to today's.For remove tailings on the
surface of the encrusted belts carrying material. TMP,belt cleaner technology
systems help bulk materials handling facilities accomplish their goals
for safety,cleanliness,environmental compliance and operating efficency.
ADANTAGE of the use;
Easy installation of the front of the pulley.
Excellent in cleaning performance.
Reduce the cost of replacement parts.
Increase the life of belts.
Our crews have the tools,the training,and experience to shorten the learning
curve and meet your requirements. TMP engineered components will improve
performance and reduce spillage and airbone dust.And engineered flow transfer
chutes help material handling operations achive ne w stanards of excellence. |
|
|

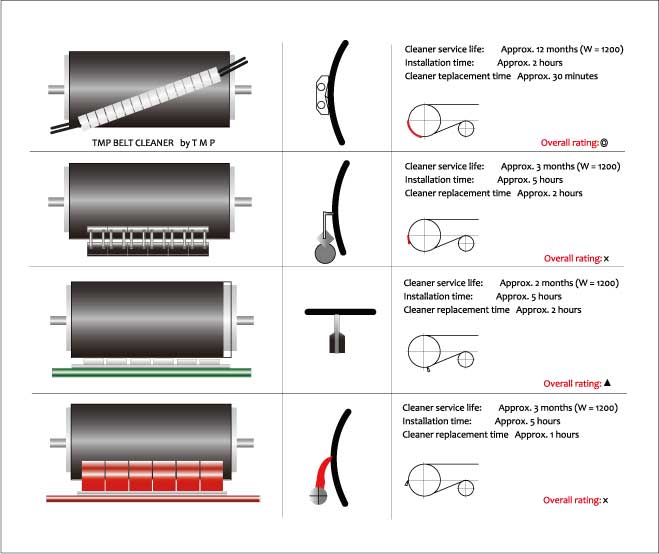

The Features of the Conventional Tip Belt Cleaner
In the conventional tip belt cleaner, a gap was
produced between the tip and the belt so that the belt cleaner could not work
properly. It also took time to install and adjust the belt cleaner on site.
|
High performance and quality of the layers of tiles,shown that there is no need for more of a scrapers for conveyor belt.
Today are installed primary and secondary scrapers for an efficient cleaning of quality,however ,trade and sudden stops that upset production.
The belt cleaner TMP reduce costs and maintenance,have long life,high performance,easily
to install and most importantly no need to install more than one. |

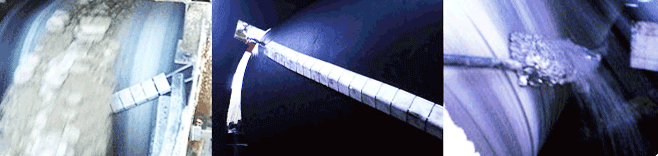

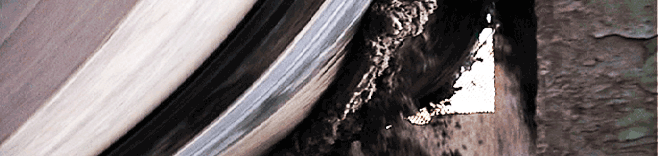

The efficacy of the cleaning is superior by the persitence of the power of abrasion from the chips.
The structure of ceramic and metal is resistante in the face of low and
high temperature,otherwise it is installation is extremely easy. |

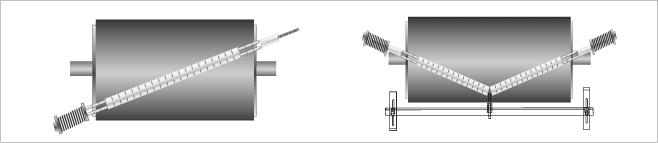

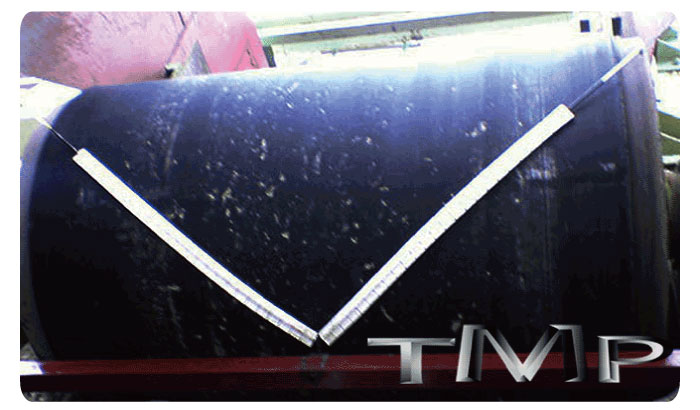

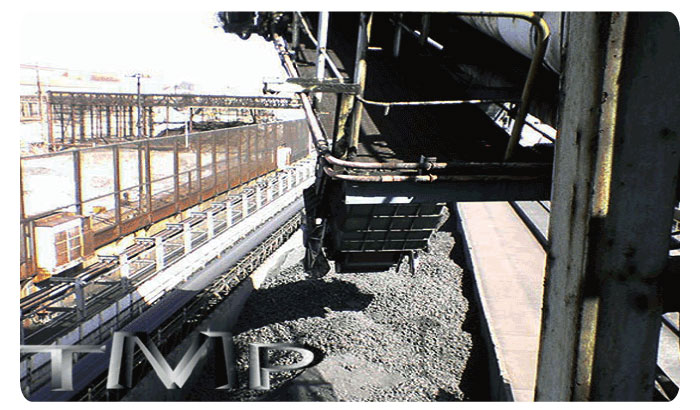

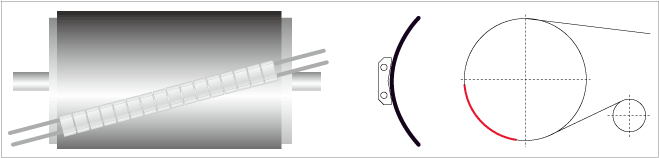

| The new belt cleaner is positioned in the front part of the head pulley. The scraper TMP were developed to act as efficient system for cleaning of waste materials and aggreates. Waste sent to the pipeline or chute means more cleaning along the belt and reducing overall costs.The belt scraper of the diagonal has the function to be installed in smaller belts of 60mm t0 1.20mm in lentgh. The belt cleaner in V of TMP is installed on conveyor belts for larger size of 1.20mm to 1.60mm in length,were developed to clean with maximum efficiency to the waste materials. |
| The TMP belt cleaner is durable and can normally
maintain its cleaning power in 24 hours operation for one year or longer (the
abrasion rate of the tip varies depending on a conveyed object). |

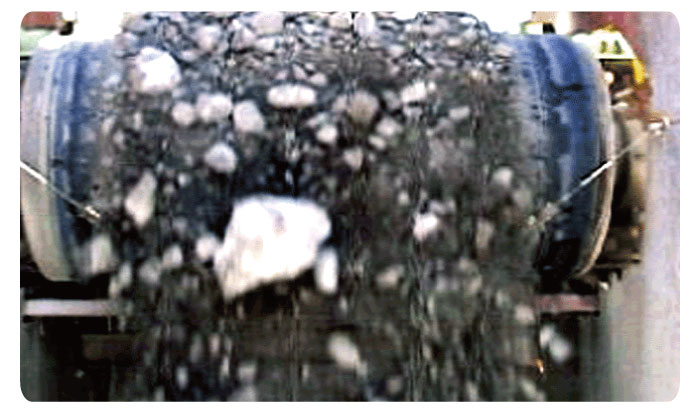

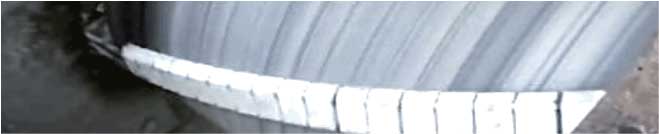

The belt cleaning is installed from the axis of the conveyor belt,until botton of the belt
apart,demonstrating the efficacy of cleaning. |
|
- Very easy to install and can be installed in a short time
- Suitable for cleaning a dry, block, wet, powder, sticky, or high
temperature object
- High cleaning power. Tips are installed with an angle to clean up a conveyor belt sharply
- Light weight. The TMP belt cleaner (W = 900) is approximately 9 Kg in
weight
- Long service life. Approx. 10 months for sinter, approx. 15 months
for limestone, approx. 15 months for coal, approx. 10 months for iron ore

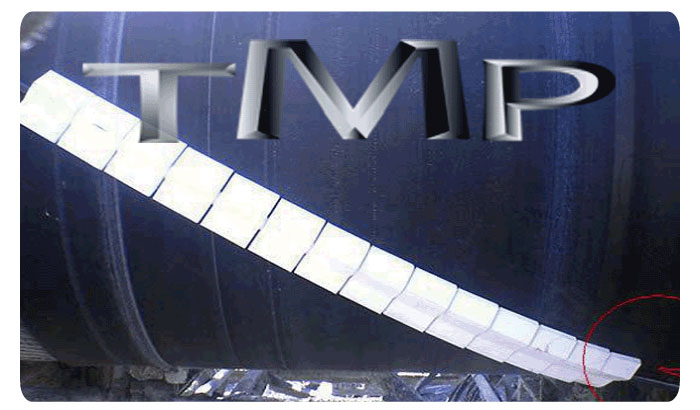

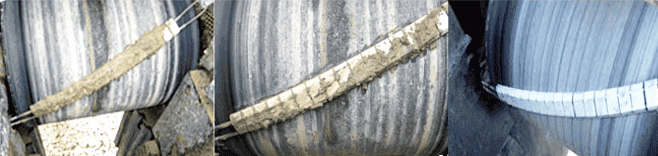

- Ceramic tips closely contact with a conveyor belt
for cleaning even if the belt is worn in the center or a crowned pulley is used
to drive the belt.
|

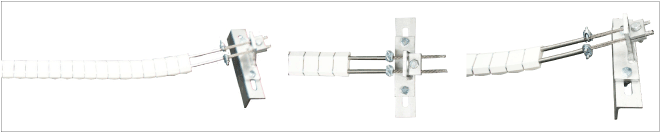

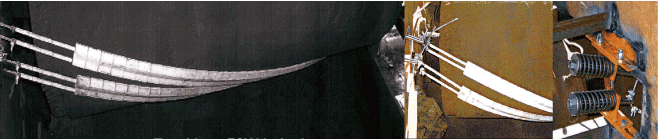

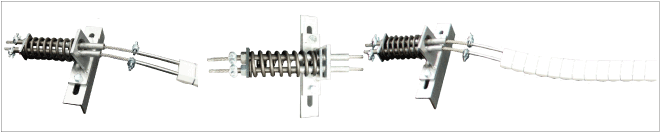

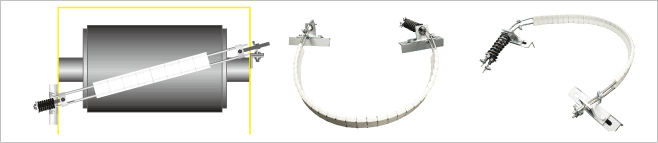

| Newly improved spring tensioned and fixed side
holders are shown in photos at the upper left and right sides, respectively.
With the new holders, the belt cleaner becomes easier to install than
conventional belt cleaners and its wire becomes adjustable individually. In
addition, the ceramic tips can contact with a conveyor belt more closely to
improve the cleaning efficiency. |
|

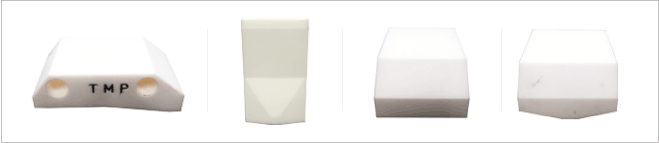

The slides of ceramic coupled with alloy steel wire of manufactured by TMP. |
|
|
