| The TMP ceramic pipe has a characteristic in its
new shape of a ceramic tip for which we have applied for a patent. A

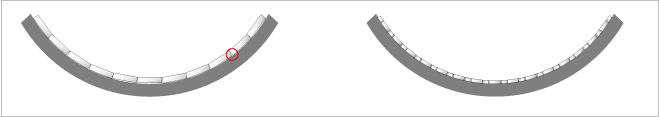

conventional ceramic tip was arranged with a certain gap between tips in a
steel pipe so that the pipe was damaged at the gap before the tip was worn out.
The newly developed ceramic tip has a shape with no straight line portion parallel
to the transport direction so that the steel pipe is protected until the tip is
worn out. |
|

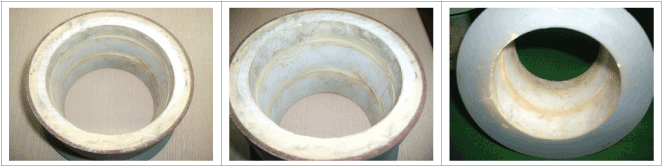

THe tailings that are in the pipeline hydraulic transport,wich are the
phenomena known as the wear abrasion,fatigue,impact.
Have seen that,the use of a tube is 6mm in lenght,the pipe wall thickness
was 20mm,and after 8 mounths of using,the bottom is correded till the pipehas
1mm of thickness.
The pipe lined by TMP has the advantage of the 3mm to 4mm of thickness after 12 mounth of use,
ten times more than life to the pipe.Guaranteed protection against abrasion.
The direction of alignment of ceramics in zig zag,have excellent resistance
tc friction of abrasive agents such as sand,gravel,gravel,tailings with
solid particles,scale,coal,pulp, tailings from phosphate,salt slag, sludge,ash,.. |
|
|

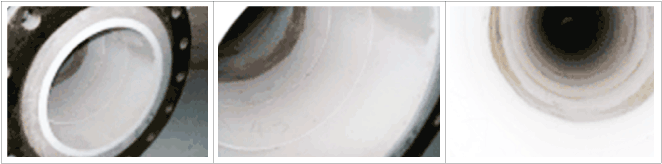

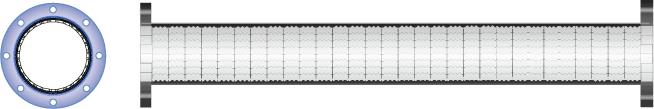

With our new production method, it has become possible to install our unique
shaped ceramic tip in a long and unreachable steel pipe. The abrasion resistance
of the TMP ceramic pipe is approximately three times than that of the conventional
products.Also, a specially processed flange is used in the steel pipe to
optimize the characteristics of the ceramic tip.
|

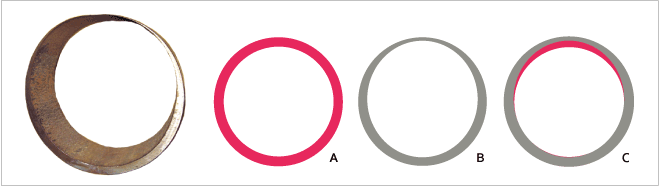

| A-20mm B-eight mounth of use C-shares worn |
|
The zig zag ceramic alumina pressure has superior performance against abrasion,wich
has five times more resistant than the conventional ceramic. If the objective
is protection of components and reduced maintenance costs,the correct application
of anti-abrasive lining led immediately to track the economy. If the objective
is protection of components and reduced maintenance costs,the correct application
of anti-abrasive lining led imediately to track the economy.

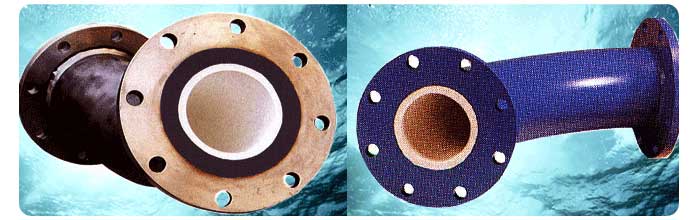

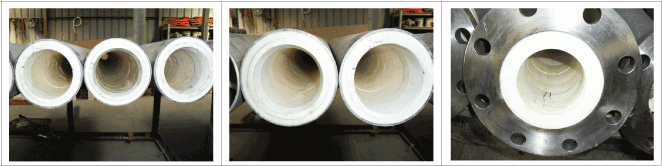

The TMP ceramic pipe lining of hydraulic and pneumatic conveying transport has efficiency and
economy,especially in steel tubes.Where they have great advantages, increasing the time of life. |
|
|
Therefore these sites,the curves,are lining internally against abrasion,including
the firt segment straight after leaving the region. |
|
|

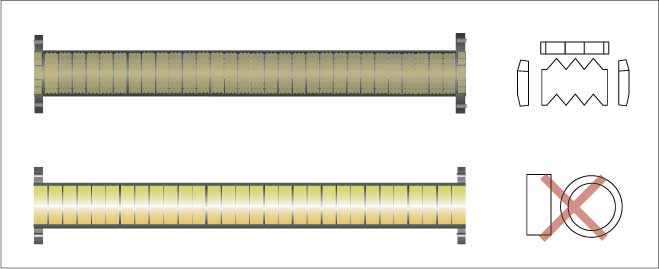

Due to its zigzag shape, the ceramic tip does not produce a groove parallel
to the transport direction so that the steel pipe is protected until the
tip is worn out.The press molded ceramic tip has more than 4 times higher
abrasion resistance than a cast-molded ceramic tip; however, it is quite
high in price. The TMP ceramic pipe has been provided at a low price by
performing all production processes internally.
|

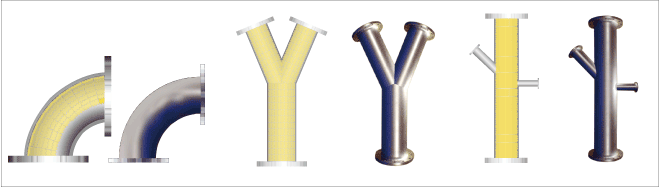

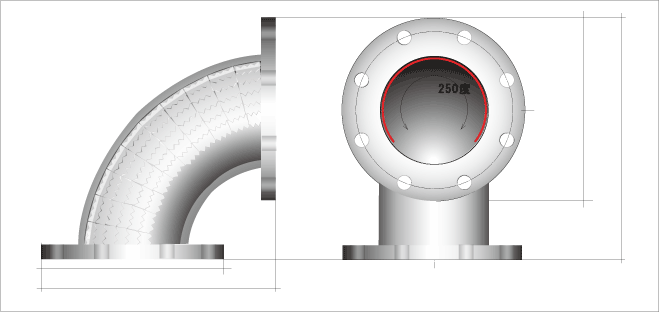

| A liner can be installed over whole area in an
elbow pipe. However, it is quite effective just by installing the liner to
approximately 75% of internal surface of the steel pipe, especially around the
outer corner of high abrasion. The required lining area is different depending
on the transported object and rate. |
 |
